EVPN – Management VRF

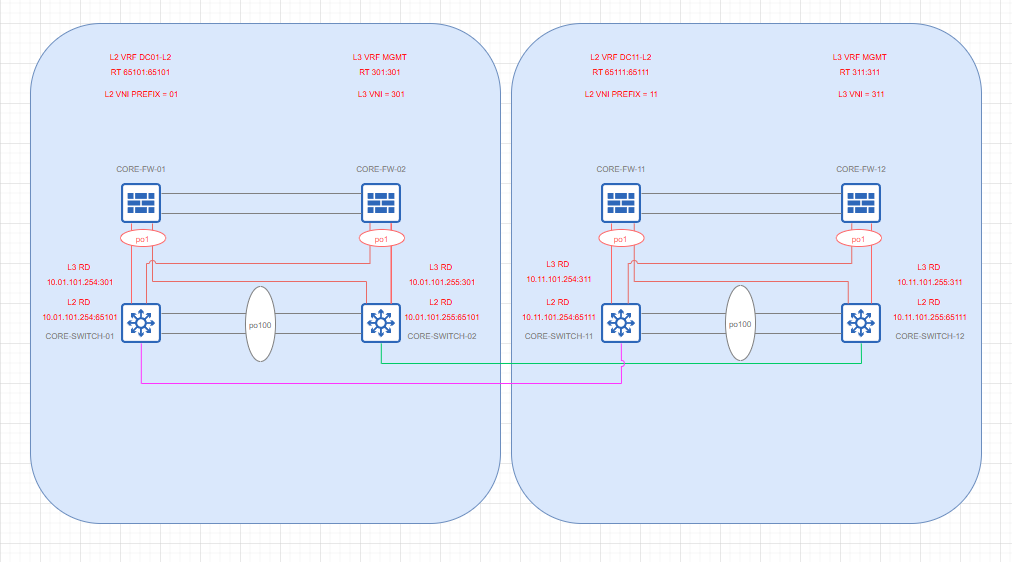

Management VRF is a Layer 3 VRF built on top of the existing “Local” L2 VRF used as transport

From the Data link layer perspective, we are using the same RT allowing for L2 connectivity within the Datacenter, yet from the Network layer view, we are standing up a separate IP VRF allowing for L3 connectivity to and from the switches.

The logic is like what has been described before for Layer 2 VRF. The RD tag gets added to all L3 routes with route targets ensuring that layer 3 traffic gets isolated to the respective DC.

L3 VNI is matching the RD
