BGP – Public VRF

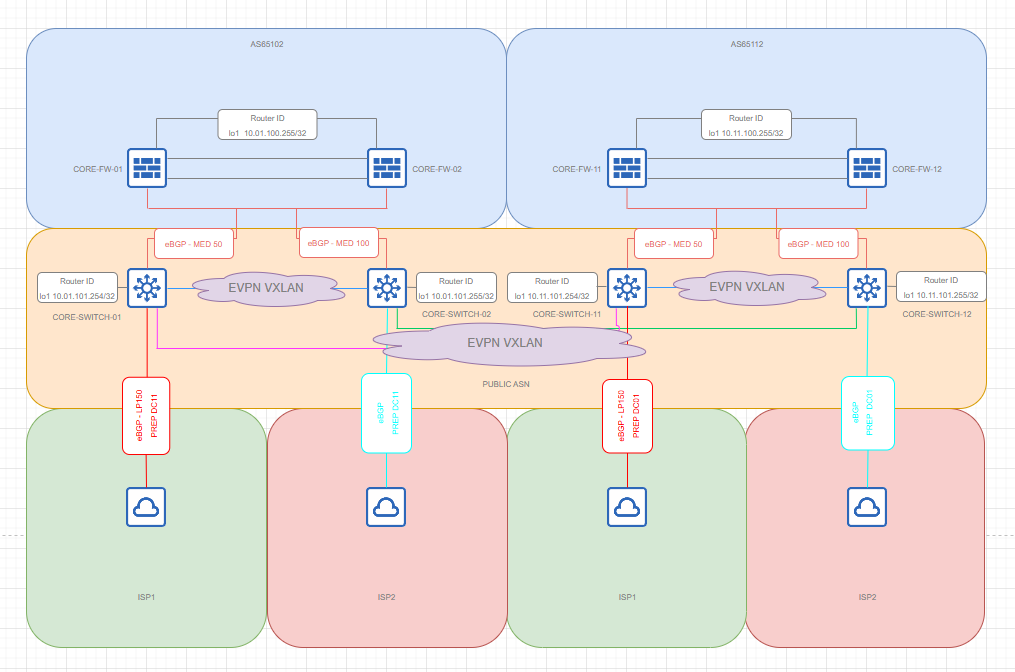

Public VRF is represented by various logical zones. At the centre we have a Core AS PUBLIC which has peering upstream and downstream.

Each of the switches has an upstream leg to one IP Transit provider with ISP1 being preferred with local preference of 150 for the outbound direction. Public ranges are being prepended with an additional as-path ASN to make sure inbound traffic gets in via the closest possible datacentre.

To allow for Inter-VRF routing (Public/Private) all switches have BGP peering with the firewall cluster. MED is used to route all traffic via switches 01/11 and failover to 02/12 when required.
